- Size: 1
- Place of Origin: CHINA
- Brand Name: SFNB
- Model Number: UCP208
- Weight: 1.000 kg
Product Description
Welcome to choose KORTON INDUSTRIAL LIMITED.
NO 1. our adwantages:
1. 14 years bearing products manufacturing and 4 years exporting experiences.
2. OEM order and non-standard bearing order can be accepted.
3. Our main bearing products include Deep groove ball bearings, tapered roller bearings, cylindrical rollerbearings, spherical ball bearings, spherical roller bearings, single row angular contact bearings, double row angular contact bearings, needle roller bearings, thrust ball bearings, spherical plain bearings, spherical bearings, automotive bearings pump bearings, and many nonstandard bearings are also in our product range.
4. Sample available
O 2. Description: Pillow block bearing
Race: we use the most advanced technology-cold extrusion process. Besides, the race will make two or three times temper to guarantee its high precision.
Rolling element: we use the rolling technology to process the roller and the steel ball of high precision bearing, the most advantage of our technology is to promote productive and productive efficiency. At the same time, our technology can prolong the bearing working life. The hardness and the diamention stability will also promote.
Steel cage: in order to avoid avoid cracks and guarantee the hardness, we use pattern "high temperature long time", our cage of high precision bearing have reached advanced level in china at surface abrasion resistance and fatigue strength.

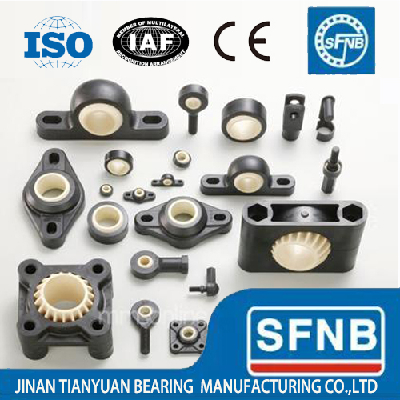

NO 3. Types of Pillow Block Bearing
SERIES: UCP UCF UCFB UCFA UCK UCT UCFL UCFLU UCFC UCFU UELP UELK UKP UKF UKFL NAP NAFC NAFU NAFL NAFLU UCPH UCPA ......
- Size: 1
- Place of Origin: CHINA
- Brand Name: SFNB
- Model Number: UCP208
- Weight: 1.000 kg
Models
mm
(mm)
L J A2 A1 A E N S
housing (kg)
UCF202
202-10
203
203-11 15
5/8
17
11/16
76 54 15 11 25.5 30.9 11.5 11.5
F203 0.57
0.50
UCF204-12
204 3/4
20
86 64 15 11 25.5 33.3 11.5 12.7
F204 0.61
UCF205-14
205-15
205
205-16 7/8
15/16
25
1
95 70 16 13 27 35.7 11.5 14.3
F205 0.80
UCF206-18
206
206-19
206-20 1-1/8
30
1-3/16
1-1/4
108 83 18 13 31 40.2 11.5 15.9
F206 1.07
UCF207-20
207-21
207-22
207
207-23 1-1/4
1-5/16
1-3/8
35
1-7/16
117 92 19 15 34 44.4 14 17.5
F207 1.40
UCF208-24
208-25
208 1-1/2
1-9/16
40
130 102 21 15 36 51.2 14 19
F208 1.80
UCF209-26
209-27
209-28
209 1-5/8
1-11/16
1-3/4
45
137 105 22 16 38 52.2 16 19
F209 2.20
UCF210-30
210-31
210 1-7/8
1-15/16
50
143 111 22 16 40 54.6 18 19
F210 2.40
UCF211-32
211-34
211
211-35 2
2-1/8
55
2-3/16
162 130 25 18 43 58.4 18 22.2
F211 3.50
UCF212-36
212
212-38
212-39 2-1/4
60
2-3/8
2-7/16
175 143 29 18 48 68.7 18 25.4
F212 4.20
UCF213-40
213 2-1/2
65
187 149 30 22 50 69.7 18 25.4
F213 5.30
UCF214-44
214 2-3/4
70
193 152 31 22 54 75.4 18 30.2
F214 5.90
UCF215
215-48 75
3
200 159 34 22 56 78.5 18 33.3
F215 6.30
UCF216 80
208 165 34 22 57 83.3 22 33.3
F216 7.30
UCF217-52
217 3-1/4
85
220 175 36 24 63 87.6 23 34.1
F217 8.90
Models (mm) (mm)
(kg)
d L J A2 A1 A E1 N S1 Bolt bearing housing
NAFU202 15 76 54 15 11 25.5 38.4 11.5 13.9 M10 NA202 NF202 0.68
NAFU203 17 76 54 15 11 25.5 38.4 11.5 13.9 M10 NA203 NF203 0.66
NAFU204 20 86 63.5 19 15 29.5 45.5 11.5 17 M10 NA204 NF204 0.77
NAFU205 25 93 70 19 15 30 45.9 11.5 17.4 M10 NA205 NF205 0.95
NAFU206 30 106 82.5 20 16 32.5 50.1 11.5 18.2 M10 NA206 NF206 1.32
NAFU207 35 116 92 21 17 35 53.3 14 18.8 M12 NA207 NF207 1.77
NAFU208 40 129 101.5 24 17 39 58.6 14 21.4 M12 NA208 NF208 2.22
NAFU209 45 135 105 24 18 40 58.9 16 21.4 M14 NA209 NF209 2.63
NAFU210 50 143 111 28 20 45 66.1 18 24.6 M16 NA210 NF210 2.95
NAFU211 55 162 130 31 21 49 74.6 18 27.7 M16 NA211 NF211 4.1
NAFU212 60 175 143 34 22 53.5 80.8 18 30.9 M16 NA212 NF212 4.86
NAFU213 65 184 149 38 22 58 89.6 18 34.1 M16 NA213 NF213 5.9
NAFU214 70 188 152 38 23 60 89.6 18 34.1 M16 NA214 NF214 6.45
NAFU215 75 200 159 41 24 62 95.8 18 37.3 M16 NA215 NF215 7.55
NAFU216 80 207 165 42 25 63 99.9 22 37.3 M20 NA216 NF216 8.65
Unit
NO.
Shaft Dia.
Dimensions(mm)
Bolt Used
Bearing
NO.
Housing
NO.
Weight
(kg)
(in) (mm) a e i g l s b z Bi n (mm) (in)
UCFL202
15 99 76.5 15 11 25.5 11.5 57 30.9 31.0 11.5 M10 3/8 UC202 FL203 0.45
202-10 5/8
202-10
203
17
203
203-11 11/16
203-11
UCFL204
204-12 3/4 20 113 90 15 11 22.5 11.5 60 33.3 31.0 12.7 M10 3/8 UC204
204-12 FL204 0.48
UCFL205
25 130 99 16 13 27 11.5 68 35.7 34.0 14.3 M10 3/8 UC205
FL205
0.6
205-13 13/16
205-13
205-14 7/8
205-14
205-15 15/16
205-15
205-16 1
205-16
UCFL206
30
148
117
18
13
31
11.5
80
40.2
38.1
15.9
M10
3/8 UC206 FL206 0.9
206-17 11/16
206-17
206-18 11/8
206-18
206-19 13/16
206-19
205-16 11/4
206-20
UCFL207
35 161 130 19 14 34 14 90 44.4 42.9 19.0 M12 1/2 UC207
FL207
1.2
207-20 11/4
207-20
207-21 15/16
207-21
207-22 13/8
207-22
207-23 17/16
207-23
UCFL208
40 175 144 21 14 36 14 100 51.2 49.2 19.0 M12 1/2 UC208 FL208 1.6
208-24 11/2
208-24
208-25 19/16
208-25
UCFL209
45 188 148 22 16 38 18 108 52.2 49.2 19.0 M16 5/8 UC209 FL209 1.9
209-26 15/8
209-26
209-27 111/16
209-27
209-28 13/4
209-28
UCFL210
50 197 157 22
16 40 18 115 54.6 51.6 19.0 M16 5/8 UC210
FL210
2.2
210-29 113/16
210-29
210-30 17/8
210-30
210-31 115/16
210-31
210-32 2
210-32
UCFL211
55
224
184
25
18
43
18
130
58.4
55.6
22.2
M16
5/8 UC211
FL211
3.1
211-32 2
211-32
211-33 21/16
211-33
211-34 21/8
211-34
211-35 23/16
211-35
UCFL212
60
250
202
29
18
48
18
140
68.7
65.1
25.4
M16
5/8 UC212
FL212
4.0
212-36 21/4
212-36
212-37 25/16
212-37
212-38 23/8
212-38
212-39 27/16
212-39
UCFL213
65 258 210 30 20 50 23 155 69.7 65.1 25.4 M20 3/4 UC213 FL213 5.0
213-40 21/2
213-40
213-41 29/16
213-41
UCFL214
70 265 216 31 20 54 23 160 75.4 74.6 30.2 M20 3/4 UC214 FL214 5.6
214-42 25/8
214-42
214-43 211/16
214-43
214-44 23/4
214-44
UCFL215
75
275
225
34
20
56
23
165
78.5
77.8
33.3
M20
3/4 UC215
FL215
6.2
215-45 213/16
215-45
215-46 27/8
215-46
215-46 215/16
215-47
215-48 3
215-48
UCFL216
216-50 31/8 80 290 233 34 20 57 25 180 83.3 82.6 33.3 M22 7/8 UC216
216-50 FL216 7.8
