- Size: 0.1
- Place of Origin: CHINA
- Brand Name: SFNB
- Model Number: NU328ECML
- Weight: 12.000 kg
NO 1. our adwantages
1. Many years bearing products manufacturing and exporting experiences.
2. OEM order and non-standard bearing order can be accepted.
3. Many sizes of bearing are available. Large quantity bearing can be provided.
4. To respect customers, you can choose the loading port.
5. A certain number of free sample can be provide to support our customer's after-sale services and warranty.

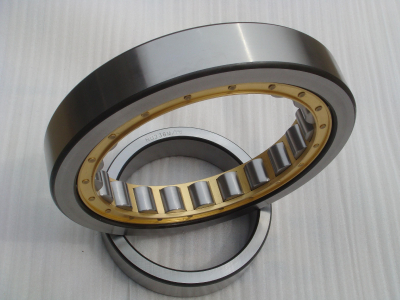

NO 2. Feature: Cylindrical roller bearing
Single row cylindrical roller bearing feature:
Tape NU and type N allow shaft moving in axial direction within limits,applicable to use as free end.
Type NJ and type NF can carry certain extent one-way axial load.Type NUP and type NH can carry certain extent both-way axial load.
Main dimension of type E cylindrical roller bearing coordinate with standard, and through modifying interior specification to increase nominal load.
Double row cylindrical roller bearing feature:
Double row cylindrical roller bearing have cylindrical hole and tapered hole type,tapered bore bearing can get needed internal clearance by self-aligning the depth of thrusting in.
Besides,there are bearing whose outer ring with oil hole and oil tank,it's nominal type code has a post position assistant code "W".
The type bearing has strong fixity resisting reversal load,mainly applicable to chief shaft of machine tool,etc.
- Size: 0.1
- Place of Origin: CHINA
- Brand Name: SFNB
- Model Number: NU328ECML
- Weight: 12.000 kg
NO 3. Types of Cylindrical roller bearing
N series cylindrical roller bearing design The inner ring has two integral flanges and the outer ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself. The bearings are therefore used as non-locating bearings.
NU series cylindrical roller bearing design The outer ring of bearings of the NU design has two integral flanges and the inner ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself.
NJ series cylindrical roller bearing design The outer ring has two integral flanges and the inner ring one integral flange. The bearings are therefore suitable for the axial location of a shaft in one direction.
NF series cylindrical roller bearing design The outer ring has one integral flange and the inner ring two integral flanges.
NP series cylindrical roller bearing design The outer ring has one integral flange and one non-integral flange in the form of a loose flange ring and the inner ring two integral flanges.
NUP series cylindrical roller bearing design The outer ring has two integral flanges and the inner ring one integral flange and one non-integral flange in the form of a loose flange ring. The bearings can be used as locating bearings, i.e. they can provide axial location for a shaft in both directions.
RN series cylindrical roller bearing design No outer ring and the inner ring two integral flanges.
